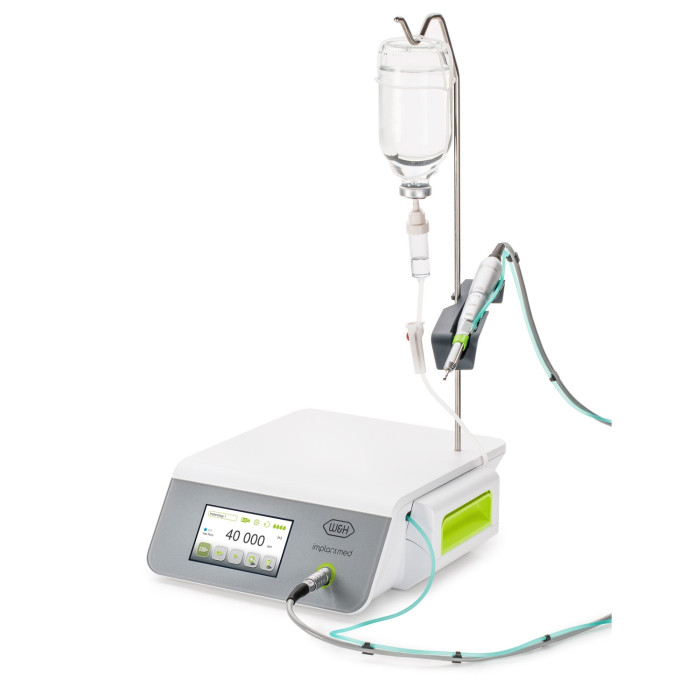

Implantmed Plus SI-1023: Optic with Cable Foot Control

The Implantmed SI-1023 from W&H is a dedicated implantology motor system with automatic torque control, intuitive colour touch screen and an ultra short powerful electric LED motor
Special Price £4,335.60 £3,613.00 Regular Price £6,204.00
Available to order
ON OFFER: Special Price This Month PLUS £200 Cashback from W&H on receipt of Copy Invoice
This deal from the manufacturer requires proof of purchase - to claim it please fill and complete
235-0033Implantmed Plus SI-1023: Non-Optic with Cable Foot Control£3,082.00 Available to order
235-0034Implantmed Plus SI-1023: Non-Optic with Wireless Foot Control £3,455.00 Available to order
235-0037Implantmed Plus SI-1023: Optic with Wireless Foot Control£3,985.00 Available to order
235-0039Implantmed Plus SI-1023: Control Unit Only£1,845.00 Available to order

Implantmed Plus SI-1023: Optic with Cable Foot Control

Safe, simple and flexible. Implantmed impresses users with its intuitive user interface and simplifies your treatment process. Every single Implantmed stands for top quality, precision and safety.

  • Secure placement: The automatic torque control guarantees the required security. It can be adjusted from 5 to 80 Ncm.
  • Measurable stability: Implant stability can be measured precisely with the W&H Osstell ISQ module, available as an accessory.
  • With intuitive ease: Colour touch screen with user‑friendly menu guidance and glass surface for easy cleaning.
  • For the dental assistant: The new pump design makes insertion of the coolant hose secure and quick.
  • Absolute freedom of movement: With the optional wireless foot control you can select the optimum position in the work area without restrictions. This means complete safety in the treatment area.
  • One for all: The optional wireless foot control can control the functions of the Implantmed and Piezomed with only one foot control.


  • Intuitive user interface
  • New pump design
  • Ultra-short, powerful electric motor with 6.2 Ncm torque
  • Motor speed range: 200 up to 40,000 rpm
  • W&H Osstell ISQ module (available as an accessory) for a precise measurable implant stability
  • Automatic torque control: 5 up to 80 Ncm
  • Automatic thread cutter function
  • Electric motor with cable, thermo washer disinfectable and sterilizable


  • Mains voltage: 230 V
  • Permissible voltage fluctuation: 220 – 240 V
  • Rated current: 0.3 – 0.8 A
  • Frequency: 50 – 60 Hz
  • Mains fuse (2 pcs): 250 V – T1.6AH
  • Maximum power consumption: 170 VA
  • Maximum power output: 80 W
  • Maximum torque at motor: 6.2 Ncm
  • Motor speed range in the rated voltage range: 200 – 40,000 min-1
  • Coolant flow volume at 100%: at least 90 ml/min
  • Length of motor cable: 1.8 m
  • Dimensions in mm (height x width x depth): 100 x 262 x 291
  • Compatible foot control: S-N2 / S-NW
  • Compatible straight and contra-angle handpieces with mini LED+: S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L
  • Warranty: 24 months


  • 1 x Implantmed SI-1023 Control unit
  • 1 x Irrigant support
  • 1 x Universal support
  • 1 x Mains cable
  • 3 x disposable irrigation tubings
  • 1 x EM-19 LC LED+ electric motor
  • 1 x Foot control with cable
More Information
Offer TypeSpecial Price this Month
Offer Extra TextSpecial Price This Month PLUS £200 Cashback from W&H on receipt of Copy Invoice
PresentationSurgical motors
