Dawn Diode Dental Laser - Multi-Wavelength

SWOT Dawn Diode Dental Laser - Multi-Wavelength

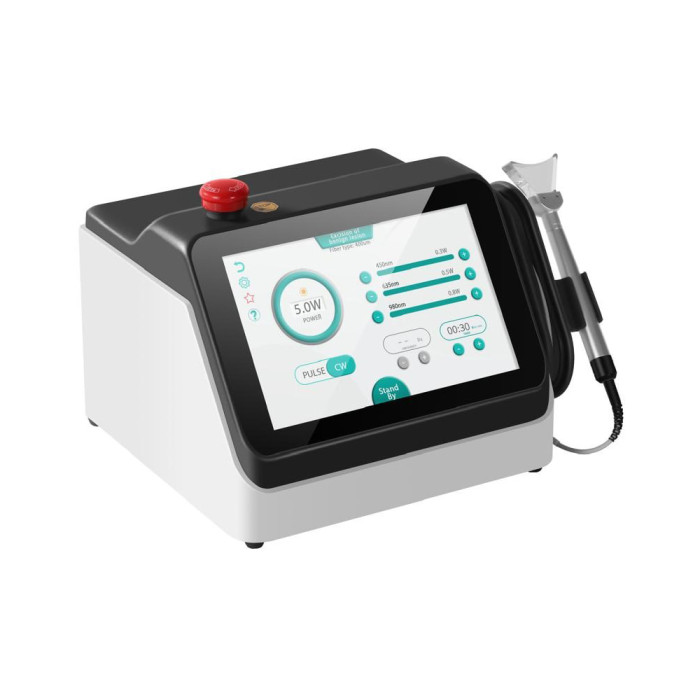

SWOT Dawn Multi-Wavelength Diode Dental Laser System: Low trauma, high precision and lightning fast recovery.

The Dawn Multi-Wavelength Diode Dental Laser System provides 3 forms of laser in a single device.

Dawn Dental Diode Laser Wavelengths

• Blue 450nm wavelength: Used for surgery with faster cutting efficiency and coagulation(Hemostasis and causing the lowest risk of collateral thermal damage.
• Red 635nm wavelength: Used for LLLT (Low Level Laser Therapy) photobiomodulation with faster wound healing and pain-free dental treatments.
• Infrared 810nm wavelength: For deeper penetration with remarkable disinfection in periodontal or endodontic disease case.

450nm Wavelength Laser

The 450nm blue laser boasts remarkable soft-tissue absorption, enhancing tissue temperature for efficient vaporization compared to traditional infrared wavelengths. Say goodbye to fiber initiation hassles and embrace non-contact cutting, revolutionizing your treatment approach for heightened soft-tissue precision. Witness the astounding benefits of minimal collateral thermal damage thanks to its exceptional absorption in hemoglobin. Step into a new era of advanced procedures with the 450nm blue laser.

635nm Wavelength Laser

The 635nm red light laser, a beacon of Photobiomodulation, unlocks the potential of Low-Level Laser Therapy. As it gracefully pierces the skin's surface, cells eagerly absorb its energy, setting off a symphony of physiological responses within the mitochondria. Witness the magic as it catalyzes wound healing and breathes life into biostimulation for dental excellence. Join the revolution, embrace innovation and let the 635nm red light laser illuminate your practice's path to radiant transformation.

810nm Wavelength Laser

The 810nm infrared laser, a true dental powerhouse, effortlessly excels in a myriad of oral treatments. Its prowess shines through in periodontal, endodontic, and hygiene therapies enhancing every facet of your practice. Embrace this timeless gem and elevate your dental expertise to new heights. Discover unparalleled precision, redefine excellence, and let the 810nm infrared laser be your guiding light to dental mastery.

SWOT Dawn Dental Laser Applications

• Oral Surgery.
• Periodontal Therapy.
• Endodontics.
• Laser Therapy.
• Teeth Whitening.

Dawn System Software

• 8 inch touchscreen with clear user interface design.
• 5 categories with 40+ presets
• Flexible visual adjustment of parameters.

Specifications

• Laser Type: High powered solid-state diode module
• Frequencies: Continuous Wave - Repeat up to 10,000 Hz

Wavelength & Power:

1. 450nm ±5% / 0.1W-4.0W (CW)
2. 635nm ±5% /50mW-200mW
3. 810nm ±5% / 0.1W-8.0W (CW)

• Clinical support: 40+ presets
• Display: 8 inch touch screen
• Power Requirements: AC100-240V; 50/60hz
• Wireless Foot Pedal: Frequency: 2.4G
• Safety Classes: Class IV laser, Electrical safety class Type B
• Weight: 3 kg
• Dimensions: 220mm x 220mm x 180mm

Contents

• Dawn Laser base unit
• Multi-function handpiece with 2-meter fiber (SMA 905 Connector)
• Disposable tip 300μm (5 pieces)
• Disposable tip 400μm (5 pieces)
• Bleaching tip
• Photobiomodulation tip
• Therapy tip
• Protective goggles (2 pairs)
• Protective blinder
• Wireless foot control
