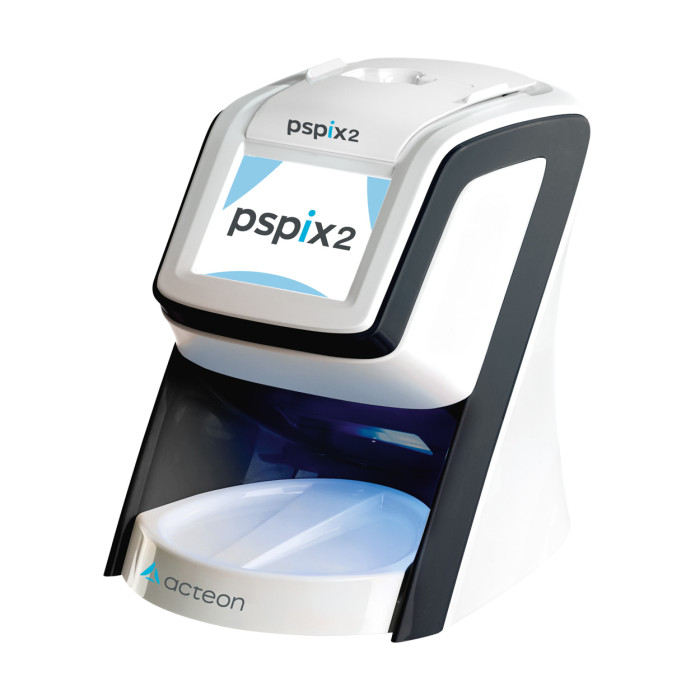

PSPiX 2 Phosphor Plate Scanner

The PSPiX 2 Phosphor Plate Scanner from Acteon has an amazing resolution, producing sharp and high quality intraoral photographs.

With the Sopro Imaging software the images can be further edited, exported or archived. Simple and easy to use for up to 10 treatment rooms.

• Multi-function: The extremely compact PSPIX 2 can be installed for even faster scanning directly in the treatment room or used in the cost effective multi-user version on up to 10 workstations.
• Image Quality: The PSPIX 2 has an amazing resolution, producing sharp and high quality intraoral photographs. With the Sopro Imaging software the images can be further edited, exported or archived.
• Intuitive operation: The operation is controlled through the colour touch screen, the operation itself is fully automatic: After entering the imaging plate no further steps are needed.
• Ultimate Hygiene: The imaging plates are protected in the hygiene bags from light and contamination.
• The "Click & Scan" concept of PSPIX 2
• If you use the PSPIX 2 in the multi-user version, choose the desired workstation in advance from the large colour touch screen.
• Then, the imaging plate is simply into put the protective cover and inserted into the slot - the rest of the operation is fully automatic!
• The scan is automatically optimised and displayed on the computer screen after a few seconds (8-10 seconds depending on the size of the film) then the imaging plate is directly deleted and ejected.

Technical Specifications

• Resolution: 20 lp/mm
• Scan Time (fast mode):1.6 seconds - 2.7 seconds
• Scan Time (high definition mode): 2.1 seconds - 3.6 seconds
• Connection: Ethernet RJ-45
• Dimensions: L. 154 x D. 204 x H. 193 mm
• Weight: 2.6 kg
• Operating voltage: 100 - 240V ~ 50 - 60 Hz

Contents

• PSPiX 2 Unit
• 4 x imaging plates (2 x size 1, 2 x size 2)
• 200 x bags & covers for imaging plate (100 x size 1, 100 x size 2)
• 1 x imaging plate storage box
• 1 x stylus for touchscreen
• 10 x samples of Soprowipes
• 1 x power supply 100-240 VAC
• 1 x Ethernet cable
• SOPRO imaging software and its licence

Please note: remote installation may be required for the software setup and is subject to an additional charge. For more information please contact our Sales and Customer Support Team who will be able to provide further information or guidance.
