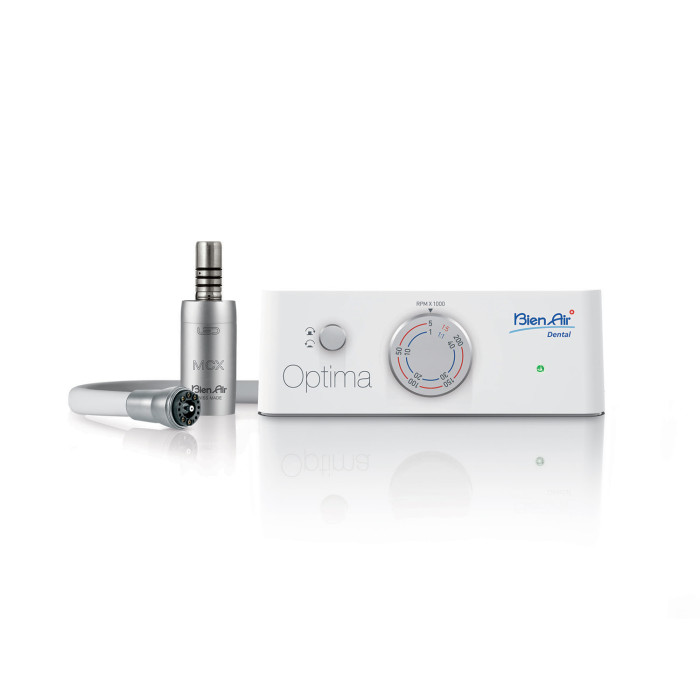

Bien-Air MCX LED Micromotor & Optima Control Box - White

Bien-Air MCX LED Micromotor & Optima Control Box - White

From its practical design to its seamless set-up and operation, every aspect of the MCX LED micromotor and Optima control box was thought-out with simplicity in mind.

Composed of an Optima tabletop control unit and Bien-Air’s best-selling MCX brushless micromotor, the Optima MCX package gives dental professionals the option to upgrade their units with the latest electric driven technology at the most affordable cost.

• Convert any Dental Unit from an Air - to Electric - Micromotor.
• Just connect an existing turbine hose to the Optima and plug in the power cable.
• It is then controlled via your the foot-pedal on your Dental Unit.
• Simple control via dial on front of Optima.
• Reverse function.
• No engineer required!

MCX LED Micromotor Technical Data

• Application: Restorative, Prophylaxis
• Type: Brushless, internal spray
• Speed range: 100-40,000 tr/min
• Max torque: 2.5 Ncm
• Torque control: Yes
• Weight: 76g
• Dimensions: Ø 21 x 42 mm
• Light: LED with adjustable intensity
• Max noise level: 51 dBA
• Sterilisable: Yes
• Ball bearings: Life-time lubricated ball bearings
• Material: Stainless steel
• Hose rotation: ± 400°
• Warranty: 3 years
• Bien-Air Reference (MPN): 1600751-001

Contents

• MCX LED Micromotor
• White Optima Control Box with MCX Hose
• 240Vac to 32Vdc power supply
• Support/Bracket for optional chair mounting
