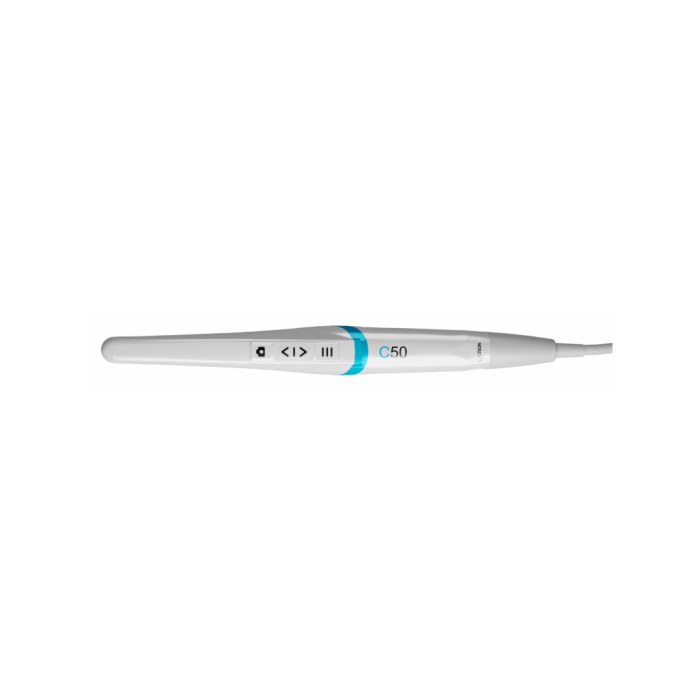

C50 HD Intra Oral Camera With Fluorescence

The C50 HD Intra Oral Camera With Fluorescence from Acteon leverages full HD imaging expertise by offering a more precise and sharp technology, producing higher quality images, combined with outstanding ergonomics to make your image acquisition as easy as possible.

Accomplish a more efficient and performant clinical evaluation thanks to our ergonomic 4 in 1 diagnostic aid camera. In one click, switch from Daylight vision mode to Daylight+, Perio or Cario vision mode.

Free yourself from constraints thanks to user-friendly device: 100% compatible with your current configuration. With embedded drivers, the camera may ony require remote installation.

Empowering you to focus on what matters the most: Your patients

• Increase treatment acceptance - Patients become more involved as they quickly understand the importance of suggested treatment.
• Improved patient communication - Highlight pathologies and explain clinical procedures easily.  Facilitate dialogue to address objections and patient concerns.
• Confident patient relationship - Provide effective treatment planning by saving the images directly in the patient record.  Easily compare images from previous patient visits and monitor progress.

Features

Full HD - Clear and detailed images

• A more confident final diagnostic
• Increased case acceptance

Vision Mode - Transcript of natural colours

• Straight-forward patient education
• Great for comparing teeth stain and sharing with patients

Auto Focus - Work faster and with better image clarity

• Ease of use for the clinician
• Improved patient comfort

Macro Vision - More visibility of fissures and caries

• Easier clinical evaluation
• Enhanced communication between clinician and patient

Depth of Field - 5 modes available in one camera

• User-friendly product for an improved procedure
• Quick switch: From one mode to another in a second
• 5 modes available:

  Daylight mode: Record of natural colours for a better interpretation of tooth shade, pathology identification and patient follow-up.  Daylight+ mode enables a high contrast, emphasizing anatomic fissures and details of the dentin structure and depth

  Perio mode: Enhancement of dental plaque and gingival inflammation, thanks to chromatic amplification

  Cario mode: Caries detection by fluorescence technique by LEDs

  Intraoral mode: Daily dentistry follow-up - Daylight or Diagnostic aid modes help you visualise anatomical details that are invisible to the naked eye or with a mirror, so you can see the difference between before and after care

  Portrait mode: Orthodontics follow-up - This mode turns off the LED light to capture the patient's face or lateral side, ensurin the best orthodontics follow-up

Features

• Full HD resolution for clear and detailed images
• 5 camera shots for a 360 view
• Fully compatible with Twain, DICOM, Windows, AIS and Mac software
• Also available without Fluorescence

Specifications

• Sensor: CMOS
• Resolution: 1920 x 1080px
• Sensitivity: 2 lux
• Frame per second (FPS): 25- 30
• Aspect ratio: 16/9
• Lighting: 6 white LEDs and 2 blue LEDs
• Focus adjustment: Automatic focus or Single focus
• 5 Visions mode: Daylight mode.  If option enabled: Daylight+mode, Perio mode and Cario mode
• Depth of field: From portrait to macro
• Image capture: Capture button or footswitch (optional)
• Angle of view: 75 degrees
• Cable length: 3m
• USB output: 3.0
• Consumption: 4.5W max
• Handpiece dimensions: L; 200; W: 30; H: 24mm
• Handpiece weight: 100g
• International Protection marking (IP): Dust & waterproofness protection IP53

Contents

• 1 x Handpiece with Fluorescence
• 1 x USB3 cable
• 20 x Disposable sheaths
• 1 x Camera cradle
• 4 x Black autoclavable tips (for auto-fluorescent version)
• 1 x USB stick with 1 month's AIS software

Please note: remote installation may be required for the software setup and is subject to an additional charge. For more information please contact our Sales and Customer Support Team who will be able to provide further information or guidance.
