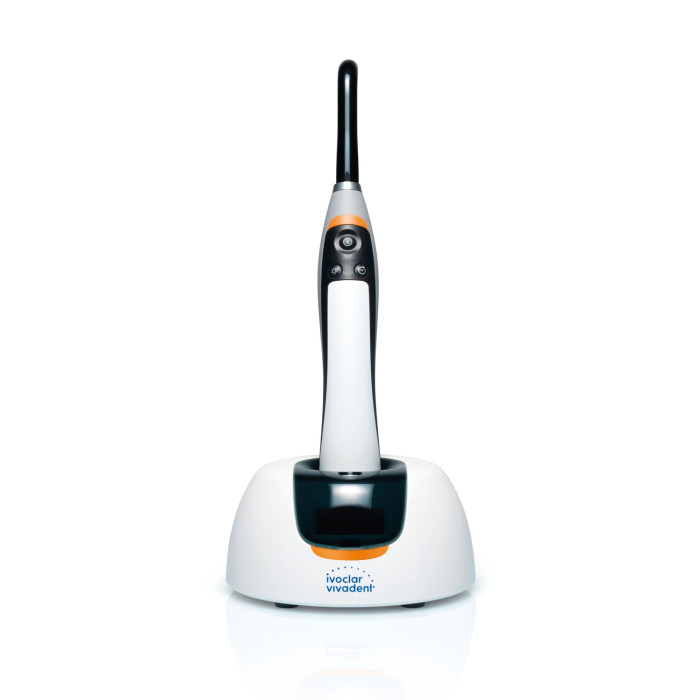

Bluephase PowerCure LED Curing Light

Bluephase PowerCure LED Curing Light

Intelligent LED light – carefree curing 

The Bluephase PowerCure intelligent LED curing light from Ivoclar Vivadent provides a high intensity cure up to up to 3.000 mW/Cm2 for short curing times as low as 3 seconds.

Patented Polyvision technology is your personal assistant when it comes to curing dental materials.    

This automatic assistance system helps you achieve reliable curing results. The curing light automatically detects movement of the handpiece during the light-curing procedure. It alerts the user of the improper operation by vibrating and automatically extends the exposure time by 10 per cent, if necessary. If the movement may prevent the material from curing properly, the light will automatically interrupt the exposure cycle so that it can be repeated. Bluephase PowerCure comes with active anti-glare protection to prevent the light from being activated in open space.

Bluephase PowerCure Advantages

• Reliable curing performance for all light-curing materials due to polywave LED
• Short curing times starting from 3 seconds due to a high intensity up to 3.000 mW/Cm2
• Wide 10>9-mm light guide for time-saving single-exposure curing procedures
• Additional Pre-Cure program

Efficient Aesthetics

Bluephase PowerCure forms a part of the "Direct Restoratives" product category. The products of this category cover the procedure involved in the direct restoration of teeth – from preparation to restoration care. The products are optimally coordinated with each other and enable successful processing and application.

Experience the difference with 3s PowerCure

When direct Class I and II restorations are placed in permanent posterior teeth, 3-second exposures from the occlusal aspect are sufficient for all curing steps with the Bluephase PowerCure in the 3sCure mode. Simply expose Adhese Universal, Tetric PowerFill and Tetric PowerFlow to the light-intensity of 3,000 mW/cm2 produced by the curing light. You will notice right away that the curing time you require is considerably reduced. At the same time, you will continue to achieve the customary high-quality aesthetic results.

Bluephase PowerCure Specifications

• Light source: Ivoclar Vivadent Polywave® LED.
• Wavelength range: 385–515 nm.
• Light intensity: 3s Cure program: 3,050 mW/cm2 ± 10 %,Turbo program: 2,100 mW/cm2 ± 10 %, High Power program: 1,200 mW/cm2 ± 10 %, PreCure program: 950 mW/cm2 ± 10 %.
• Operation: 3 min on / 7 min off (intermittent).
• Light guide: 10>9 mm, autoclavable.
• Signal transmitter: Beeps every 10 seconds and every time the Start/Stop button or the Time/Program selection button is activated or the anti-glare protection is enabled or the curing process is aborted and 30-second waiting time after the 3sCure program has been used twice in succession.
• Dimensions of the handpiece: L = 170 mm, B = 30 mm, H = 30 mm
• Weight of the handpiece: 135 g (including battery and light guide)
• Operating voltage of the handpiece: 3.7 VDC with battery 5 VDC with power pack
• Operating voltage of the charging base: 5 VDC
• Power supply: Input: 100–240 VAC, 50–60 Hz max 1 A Output: 5 VDC / 3 A Manufacturer: EDAC POWER ELEC. Type: EM1024B2
• Operating conditions: Temperature +10 °C to +35 °C Relative humidity 30 % to 75 % Ambient pressure 700 hPa to 1060 hPa
• Dimensions of the charging base: D = 110 mm, H = 55 mm
• Weight of the charging base: 145 g
• Charging time: Approx. 2 hours (with the battery empty)
• Power supply of the handpiece: Li-Ionen battery

Contents

• 1 x Bluephase PowerCure Charging base with power cord and power pack
• 1 x Bluephase PowerCure Handpiece
• 1 x Handpiece support
• 1 x Light guide 10>9 mm
• 1 x Anti-glare shield
• 3 x Anti-glare cones
• 1 x Pack of sleeves (1x 50 pcs)
• 1 x Instructions for Use
