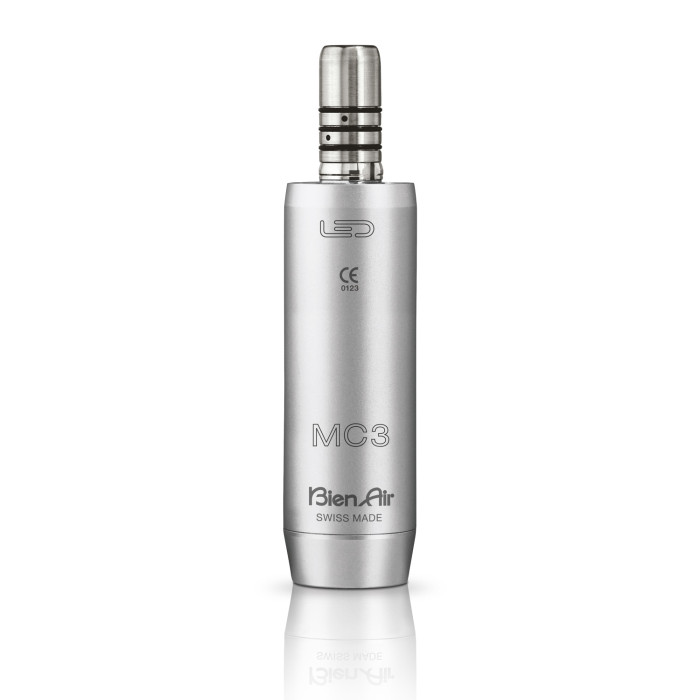

Bien-Air MC3 LED Micromotor

Bien-Air MC3 LED Micromotor

The MC3 LED Micromotor from Bien-Air has a versatility that sets it apart with vibration-free operation from 60 to 40,000 rpm.

Prized and recommended for its reliability and endurance, the MC3 Micromotor has been proving its worth for many years.

With a rotation speed ranging from 60 to 40,000 rpm, the performance it offers is remarkable.

How Does The MC3 Carbon Brush Micromotor Work?

All electric micromotors are made up of a rotor and a stator. The rotation is generated by magnets interacting with an electric current flowing through a wire coil.

In the case of brush micromotors, the coils are located on the rotor.

Electrical power is supplied to the coils through carbon brushes located on the stator.

The electrical current in the coil interacts with the magnets of the stator, thus generating rotation.

MC3 LED Micromotor Technical Data

• Application: Restorative, Prophylaxis
• Type: With brushes, internal spray
• Speed range: 60-40,000 rpm
• Max torque: 2.8 Ncm
• Torque control: No
• Weight: 100g
• Dimensions: Ø 21 x 95 mm
• Light: LED with adjustable intensity
• Max noise level: 54 dBA
• Sterilisable: No
• Ball bearings: Life-time lubricated ball bearings
• Material: Stainless steel
• Hose rotation: ± 400°
• Warranty: 18 months
• Bien-Air Reference (MPN): 1600680-001

Contents

• 1 x Bien-Air MC3 LED Micromotor
